BENTLY NEVADA 3500/94

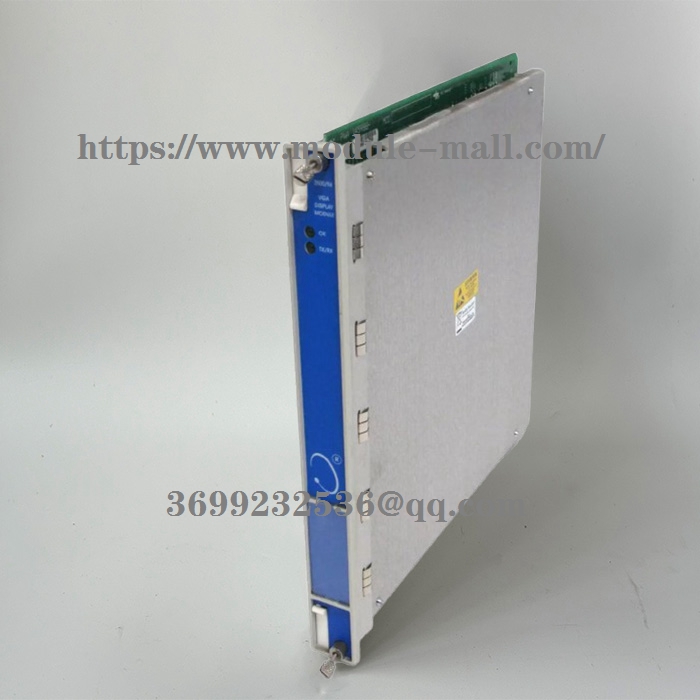

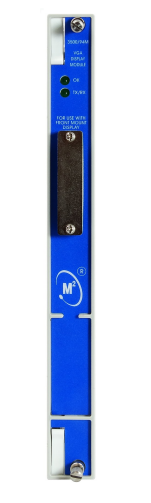

BENTLY NEVADA   3500/94   VGA Display Monitor

The 3500/94M VGA module displays all 3500 machinery protection system information, including:

1）System event list

2）Alarm event list

3）All module and channel data

4）Alarm and OK status

5）Nine custom display options

Use the 3500 Rack Configuration Software to configure up to nine custom screens. By default, one bar graph screen shows all of the 1X-filtered vibration measurements, while another shows the proximity transducer gap values.

You can organize custom screens into machine train groups.

You can also organize system data into any pages on the custom screen.

System Components

The 3500/94M is comprised of:

1）The 3500/94M VGA module

2）An I/O module

3）A 10" or 15" VGA touch screen display

You can mount the VGA display monitor using standard cables up to 6 m (20 ft) from a 3500 rack, or using a supported Keyboard Video Monitor (KVM) Extender, up to 10 km (6.2 miles) from the 3500 rack.
