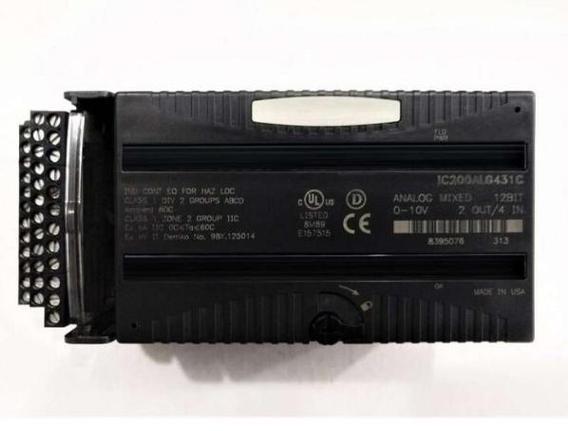

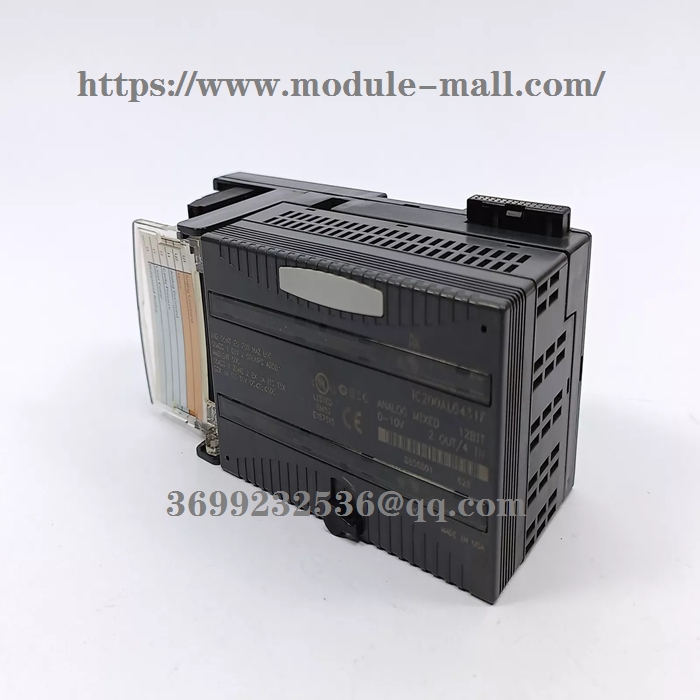

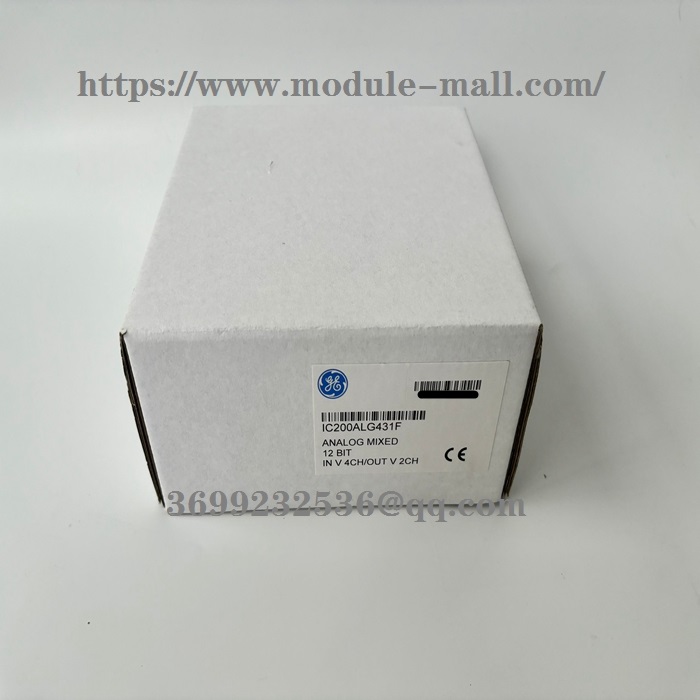

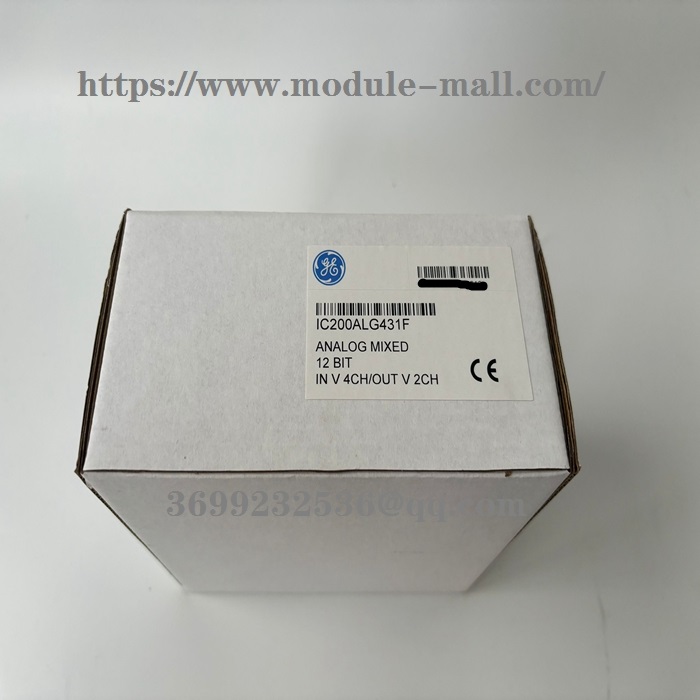

GE IC200ALG431F

GE IC200ALG431 is a hybrid module designed by GE Fanuc specifically for industrial automation. This 12 bit device is known for its flexibility and practicality.

Module Design
IC200ALG431 integrates input and output through a single carrier base, making configuration more flexible. The front LED indicator provides intuitive power flow indication.
technical specifications
The module is compact in size, measuring 4.30 inches wide, 1.95 inches deep, and 2.63 inches high. The weight is approximately 4.4 pounds. It supports 0 to 10 volt DC analog input and output, powered by an external power source.
Connection method
IC200ALG431 uses shielded twisted pair cable for analog channel connection. During installation, the module should be properly grounded to the source device and connected through a connector type carrier.
Diagnosis and Installation
The module is equipped with a diagnostic program for easy reporting of circuit faults. The default I/O values can be configured through jumper wires. The module consumes 60mA of current from the 5V bus interface unit and supports panel installation.
Environmental requirements
IC200ALG431 is an indoor device with an open architecture design that should prevent water spray and be kept away from heat sources. The ambient temperature should not exceed 60 degrees Celsius
