PROSOFT MVI56-MNET

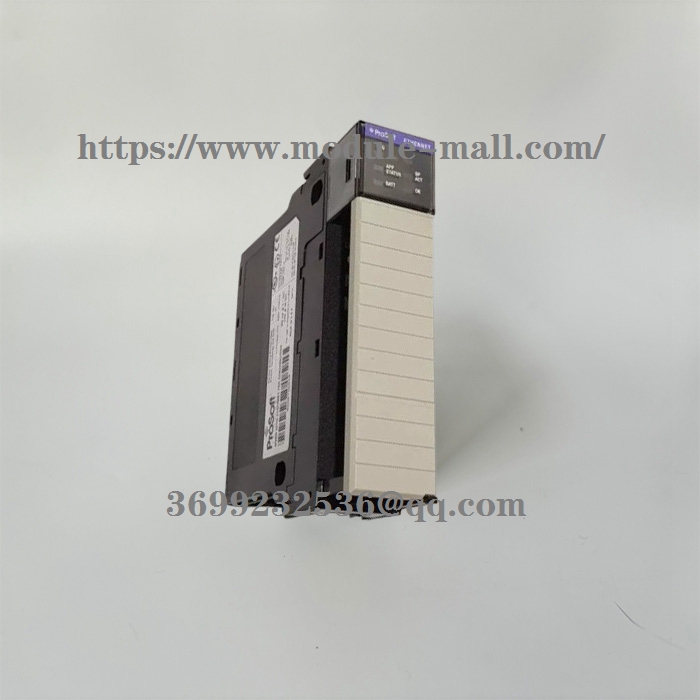

PROSOFT   MVI56-MNET   TCP/IP client/server enhanced communication module

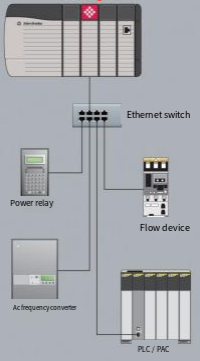

By using the MVI56E Modbus TCP/IP client/server enhanced communication module, Rockwell Automation can be easily achieved ®  The connection between ControlLogix processors and Modicon programmable automation controllers (PACs), as well as various Modbus TCP/IP compatible instruments and devices.
The enhanced features of MVI56E include local and remote configuration and diagnostics through the module's Ethernet port, as well as CIPconnect bridging through Rockwell Automation ControlNet and EtherNet/IP networks ®  Technology.
MVI56E-MNET and MVI56E-MNETXT are functionally identical. MVI56E-MNET is used for standard process application projects. MVI56E-MNETXT for Logix XT ™  Control platform, capable of working in extreme environments. It can withstand higher operating temperatures and has a coating that provides protection under harsh or corrosive conditions.
General specifications
Backward compatibility with earlier versions of MVI56-MNET
Compatible with single slot 1756 ControlLogix backplane
10/100 Mbps automatic cross detection Ethernet configuration and application ports
User defined module data storage area that can map up to 5000 16 bit registers
Configure and diagnose networks that support CIPconnect using ControlLogix 1756-ENxT and 1756-CNB modules and EtherNet/IP direct communication method
Support ProSoft Configuration Builder (PCB) software, which is a Windows based graphical user interface that enables easy product and network configuration
Use ladder diagram logic samples and user-defined instructions (AOI) to transfer data between modules and processors
Equipped with a 4-character scrolling alphanumeric LED display, displaying status and diagnostic data in concise English - no need to interpret ambiguous error or alarm codes
ProSoft Discovery Service (PDS) software is used to search for modules on the network and assign temporary IP addresses
Personalized module - using non-volatile industrial grade CF card storage network and module configuration, quickly completing on-site product replacement through CF card data transmission.
Functional specifications
MVI56E-MNET and MVI56E-MNETXT are functionally identical. MVI56E-MNET is used for conventional processes and control environments. MVI56E-MNETXT is coated to provide additional protection in harsh or corrosive environments, and can operate in extreme high or low temperature environments.
Both modules transmit data with the largest possible I/O image block size to optimize data throughput and update time.
For the ControlLogix processor, both modules are used as input/output (I/O) modules, rather than communication modules.
In local rack applications, both modules can work well and can also be used in remote rack applications. The inRAxMNET module has a version optimized for remote racks and reduced data block size. Please refer to MVI56E-MNETR for specific information
Support the transmission of code through special blocks in ladder diagrams to obtain module status and execute special functions (command control, event commands, etc.)
