ICS Triplex T8461

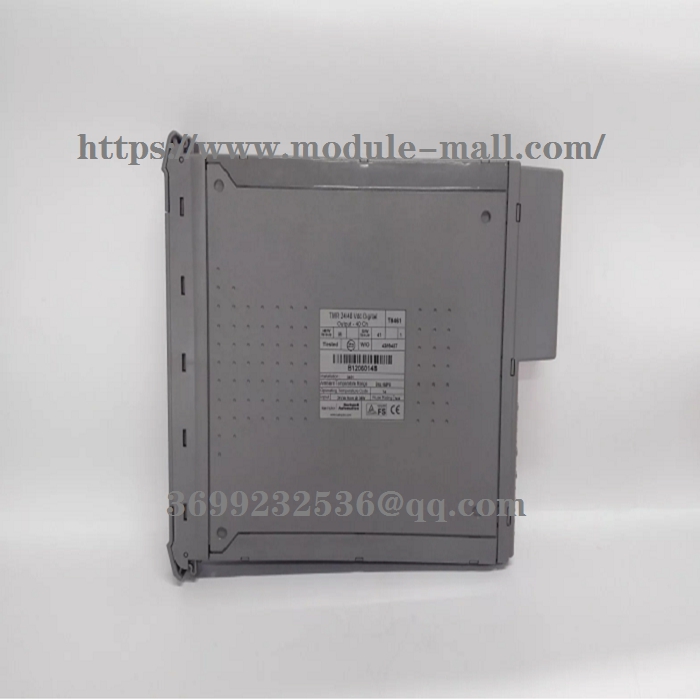

ICS Triplex  T8461   24Vdc Digital Output Module-40Channel

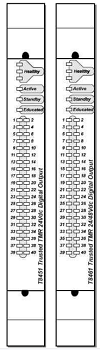

The TMR 24V dc digital output module, shown in Figure 6-3,interfaces to 40 field devices. The module tests for stuck on and stuck off failures.
The module provides automatic linemonitoring of field devices. This feature enables the module to detect both open and short circuit failures in field wiring and load devices.

Output modules read back current and voltage, which can be used in application programs or for troubleshooting.

The module utilizes automatic over-current protection (per channel). No fuses are required.

The module provides on-board sequence of events (SOE) reporting with a resolution of 1ms. An output change of state triggers an SOE entry. Output states are automatically determined by voltage and current measurements on board the module.
Variable names connected to output points (not states) will be time tagged at the main processor, not at the output module.

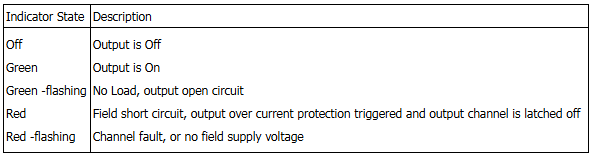

The default indicator modes for digital outputs are:

System Overview
TRUSTED programmable controller consists of three main parts: controller part, expander part, and power supply part. In the controller
There are various triple modules in the parts and extender sections.
All triple modular units are installed in a 19 inch rack. The installation bracket allows for front panel installation and rear panel installation.
The communication between TRUSTED system and external systems can be achieved through the main processor, dedicated communication module, or gateway module. Multiple communication protocols can be used for serial communication and Ethernet communication. The communication module can be installed in the control rack and expansion rack.

Other models:  T8100 ，T8110B ，T8110C ，T8151B ，T8160 ，T8191 ，T8193 ，T8231 ，T8300 ，T8310 ，T8311 ，T8402 ，T8403 ，T8403C ，T8431 ，T8431C ，T8451 ，T8451C ，T8461 ，T8461C ，T8480 ， T8480C
