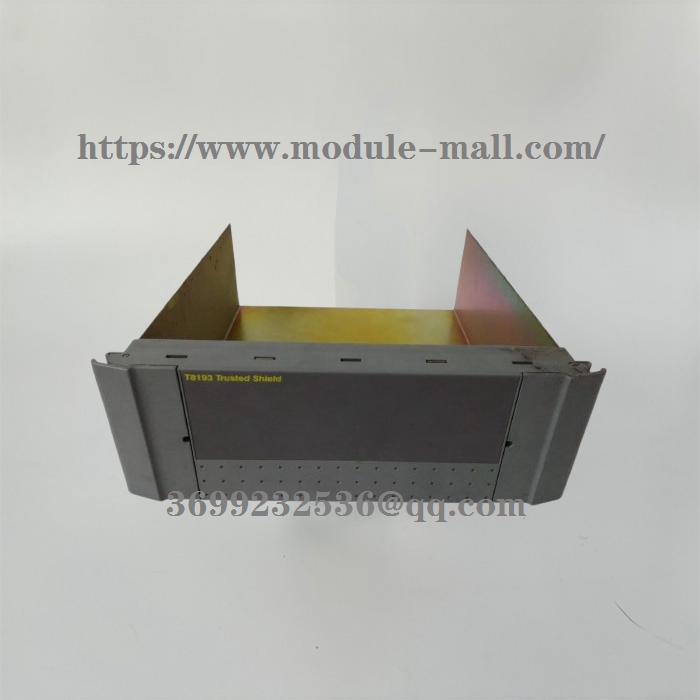

ICS Triplex T8191

ICS Triplex  T8100   Controller Chassis

The controller chassis can be either swing frame or fixed frame mounted. The chassis may also be panel (rear) mounted by the addition of a panel mounting kit T8380 that comprises a pair of brackets with rear facing ears. The chassis can house up to two TMR processor modules and up to eight single width modules (i.e., I/O, expander interface, communications). The intermodule bus (IMB) backplane is part of the chassis and provides the electrical interconnection and other services for the modules. The maximum data transfer rate of the IMB is 150Mbaud. There are no user-serviceable parts inside the chassis.

Modules are inserted by sliding them carefully into their slot position. Ensure that the U-channels of the module top and bottom casings engage the raised guides of the upper and lower chassis plates. Ejector levers on the modules secure the modules within the chassis.

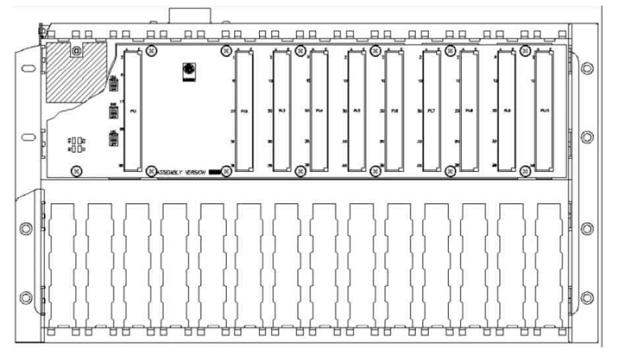

The two left-most module positions are triple width and are used to accommodateTMR processors. The first slot is designated logical 0 and the adjacent slot logical 15. The remaining module positions are designated logical 1 to 8 from left to right. The modules occupying these slots are defined in both the system and I/O configuration managers, as described in Sections 10 and 11.

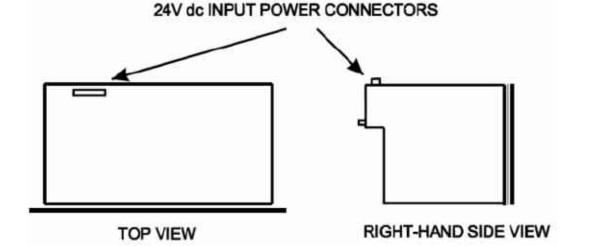

Redundant +24Vdc power is supplied to a plug connector at the rear top of the chassis, as shown in Figure 4-2. Redundant power is supplied to all modules in the chassis through the backplane.

System Overview
TRUSTED programmable controller consists of three main parts: controller part, expander part, and power supply part. In the controller
There are various triple modules in the parts and extender sections.
All triple modular units are installed in a 19 inch rack. The installation bracket allows for front panel installation and rear panel installation.
The communication between TRUSTED system and external systems can be achieved through the main processor, dedicated communication module, or gateway module. Multiple communication protocols can be used for serial communication and Ethernet communication. The communication module can be installed in the control rack and expansion rack.

Other models:  T8100 ，T8110B ，T8110C ，T8151B ，T8160 ，T8191 ，T8193 ，T8231 ，T8300 ，T8310 ，T8311 ，T8402 ，T8403 ，T8403C ，T8431 ，T8431C ，T8451 ，T8451C ，T8461 ，T8461C ，T8480 ， T8480C
