FOXBORO FPS400-24

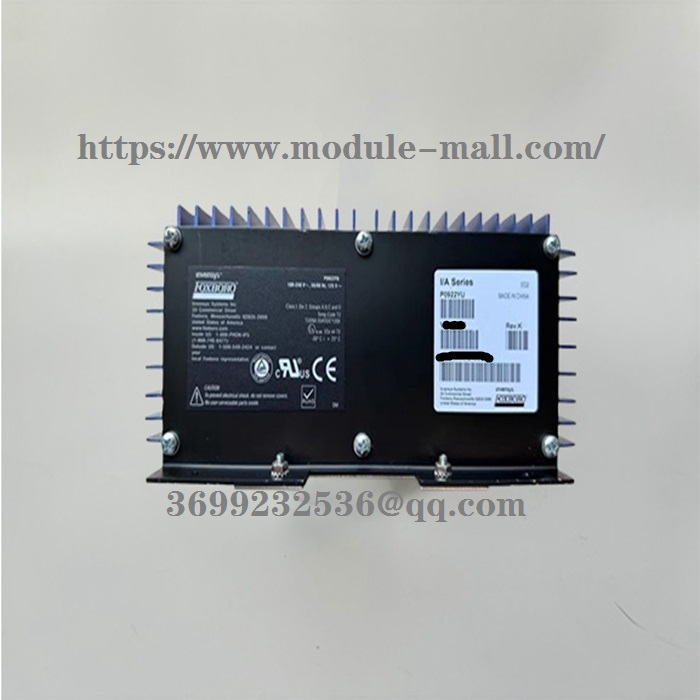

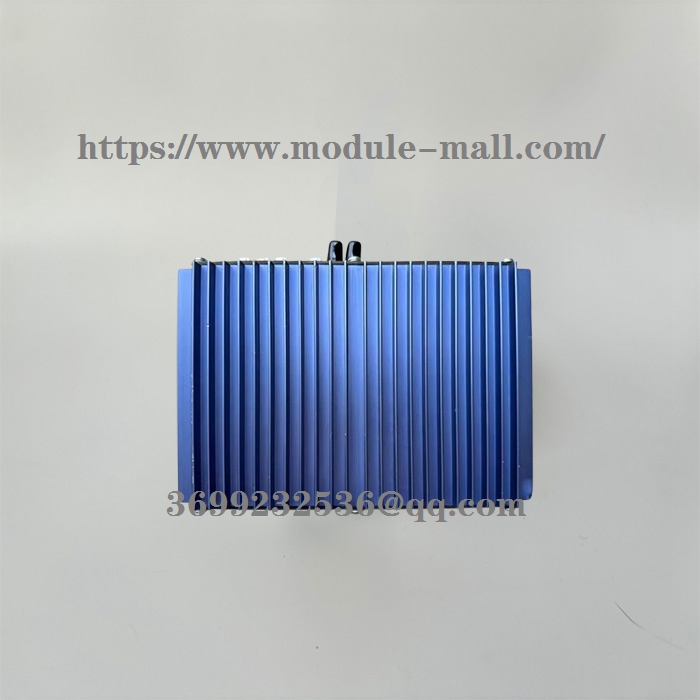

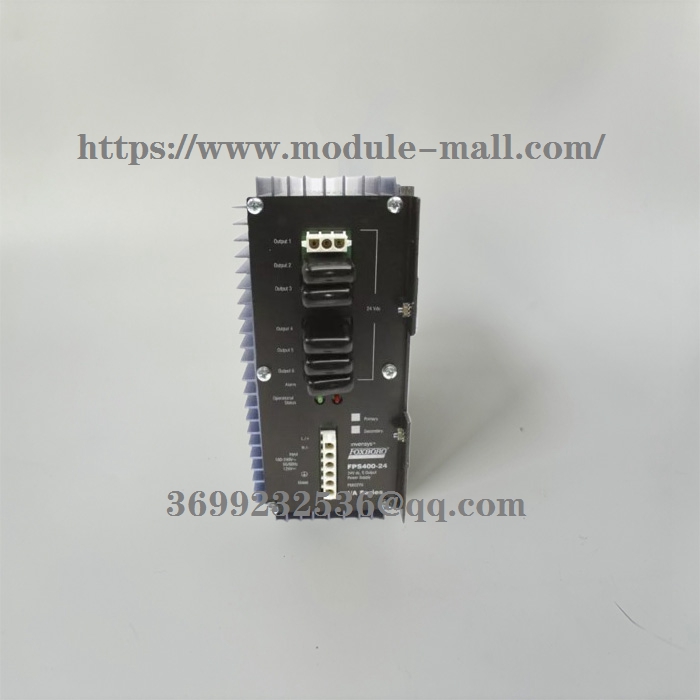

FOXBORO  FPS400-24   Power module

Foxboro ™ The DCS standard 200 series power supply provides a 20024 V fps 400-24 power supply with a power of 400w for standard 200 series substrates. It has been certified by the organization and can be used for 22 zone and 2 zone applications. Provide two different input voltage power supplies:

-120/240V AC or 125V DC input (P0922YU)
-24V DC input (P0922YC).
Foxboro DCS tested and qualified power supply can be used in conjunction with 200 series fieldbus modules (FBM).
For locations that require solutions with lower power and/or smaller size than the fps2400-24 power supply, fps240-24 and fps120-24 power supplies can be used. For details, please refer to the 200 series power supply - fps240-24 fps240-24 fps120-24 (PSS 41H-2FPS).
The high-efficiency input circuit can automatically accept AC or DC input voltage. The 120/240 V AC or 125V DC input circuit (P0922YU) provides an AC voltage range of 85 to 265V (or a DC voltage range of 108 to 145V) at an operating frequency of 47 to 63Hz
Sealed power supply has high efficiency (P0922yu up to 95%, P0922YC up to 81%), therefore high reliability.

The quantity of standard 200fbm/fieldbus communication module (FCM)/field control processor (FCP), the type of terminal components used, and whether each field device is powered internally or externally. FPS400-24 can also be used as an on-site power supply.

Other models： FBM230 , FBM231 , FBM232 ,  FBM233  ，FBM237 ，FBM240 ，FBM241 ，FBM241C ，FBM242 ，FBMSSW ，FBMSVH ，FBMSVL ，FCM10E ，FEM100 ，FCP270 ，FCP280 ，FPS400-24
