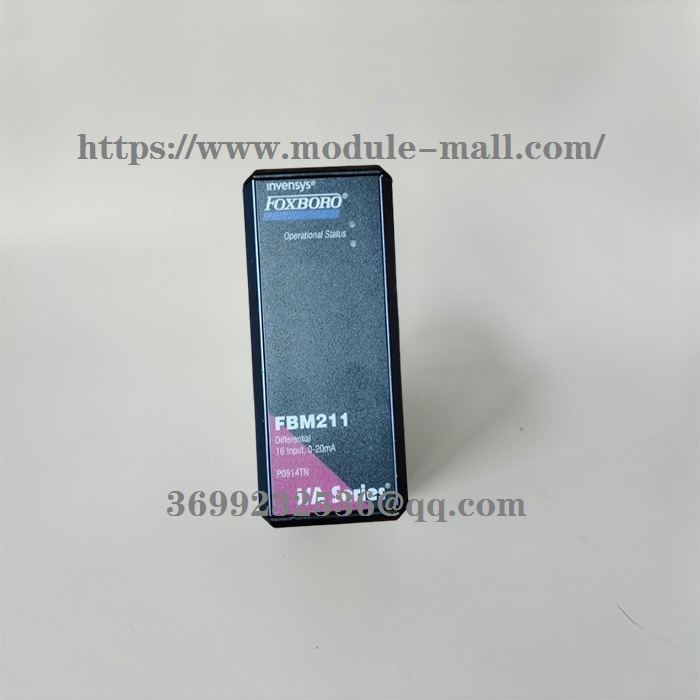

FOXBORO FBM211

FOXBORO  FBM211     Controller processing module

FBM211 has a sturdy pressed aluminum shell that can protect electronic circuits from physical damage, adapt to various environmental requirements, and achieve the highest environmental level of ISA standard S71.04. This module is suitable for use in harsh environments such as power plants, steel mills, cement plants, ships, and paper industries, and has high-precision signal conversion capabilities.

Input channel: Provides 16 sets of isolated and independent channels, each channel can accept DC input signals from 0 to 20.4mA, and the current limit for each channel is 33mA.
Communication capability: Supports communication with its related FCM or FCP through redundant 2Mbps module fieldbus.
Input voltage: The input voltage range is 24V DC ± 5% (i.e. 22.8V to 25.2V).

Power consumption: At 24 volts DC, the power consumption is 7 watts (better value), and the maximum value is 11 watts (internal power supply when all inputs are 20.4mA).

Other models：FBM202 , FBM203 , FBM204 , FBM205 , FBM206 , FBM207 , FBM207b , FBM208 , FBM211 , FBM212 , FBM214 , FBM214b , FBM215 , FBM216 , FBM216b
