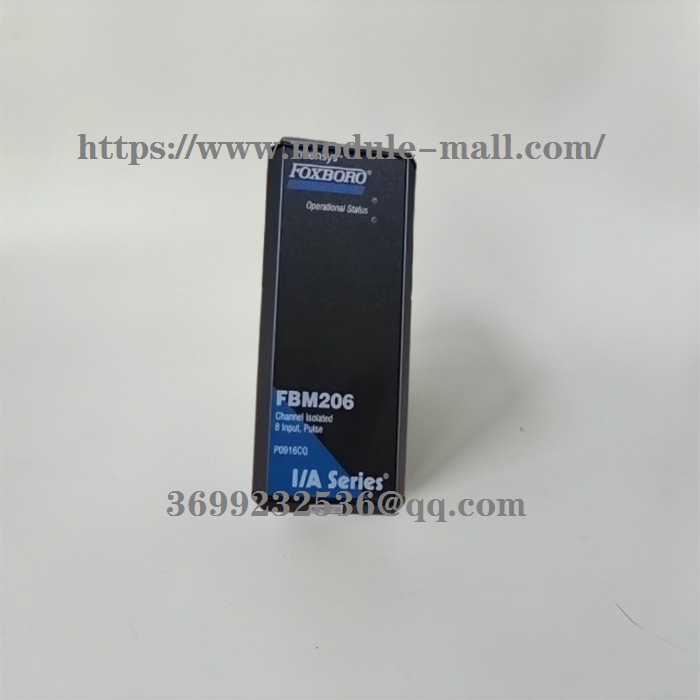

FOXBORO  FBM206  Pulse input module

FBM206 is an 8-channel pulse input interface component mainly used for receiving and processing pulse signals from various sensors. Each channel can accept pulse signals with a maximum frequency of 25KHz, suitable for devices such as vortex flowmeters, turbine flowmeters, solid-state or electric relays. FBM206 has channel isolation function, where each channel is isolated from each other and from the ground wire, ensuring stable signal transmission and physical protection of the equipment.Technical specifications and performance parameters
Input channels: 8 isolated independent pulse input channels, each receiving pulse signals ranging from 10Hz to 25KHz.
Accuracy: The pulse counting accuracy is 0.01% of the reading, and there is no loss of pulses.
Power requirements: The input voltage range is 24Vdc ± 5%, the maximum power consumption is 7W, each channel can provide 24Vdc, and the maximum current is 30mA.
