FOXBORO FBM207c

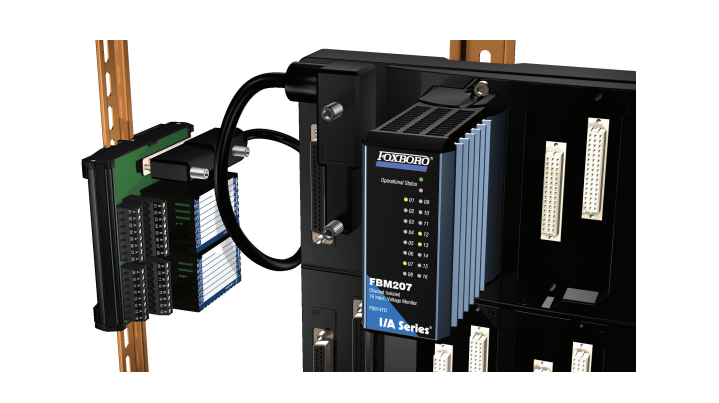

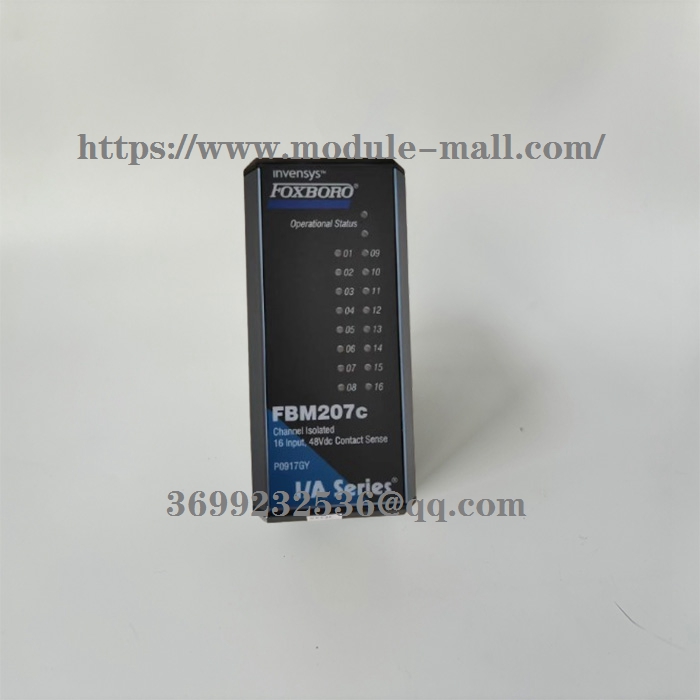

FOXBORO  FBM207c   Channel isolation module

FBM207C is a controller produced by FOXBORO, mainly used in the field of industrial automation control. ‌

The FBM207C controller has the following main functions and features:
Program control function: It has a 30+20 segment program control function, which can control the temperature rise and fall of any slope. It has programmable/operable commands such as jump (loop), run, pause, and stop, allowing the program to be modified at any time during the control operation.
Artificial intelligence adjustment algorithm: Using AI artificial intelligence adjustment algorithm with curve fitting function, it can achieve smooth and even curve control effect.
Event output function: The event output function can be edited during program operation, in conjunction with controlling external device actions; The SV transmission output function can be used as a program generator.
Multiple input support: Supports various thermocouples, thermistors, linear voltage, current, resistance, and radiation (infrared) thermometers, and has special input specifications for expanding input sockets. It can customize non-linear correction tables for special inputs and can be externally connected with Cu50 copper resistors as thermocouple cold end compensation. The measurement accuracy is 0.1 level (V8.0 version), and the temperature drift is less than 50PPM/℃.
Modular output support: Supports SSR voltage, linear current (voltage), relay contact switch, thyristor contactless switch, single-phase and three-phase thyristor zero crossing trigger, single-phase thyristor phase-shift trigger output, etc., with a control cycle of 0.24~60 seconds.
Multiple adjustment methods: It has multiple adjustment methods such as standard PID, AI artificial intelligence adjustment APID or MPT, and has self-tuning and self-learning functions. It has excellent control characteristics without overshoot or undershoot, and can also use positional control (ON-OFF) function. The dual parameter PID can support heating/cooling dual output function.

Communication interface: Supports RS485 or RS232C communication interfaces, and with the help of fast communication technology, it can easily build large and medium-sized computer control systems with a scale of thousands of points or connect AI series true color human-machine interface touch screens/split type paperless recorders.

Other models：FBM201 , FBM201d , FBM202 , FBM203 , FBM204 , FBM205 , FBM206 , FBM207 , FBM207b , FBM207c , FBM208 , FBM211 , FBM212 , FBM214 , FBM214b , FBM215 , FBM216 , FBM216b
