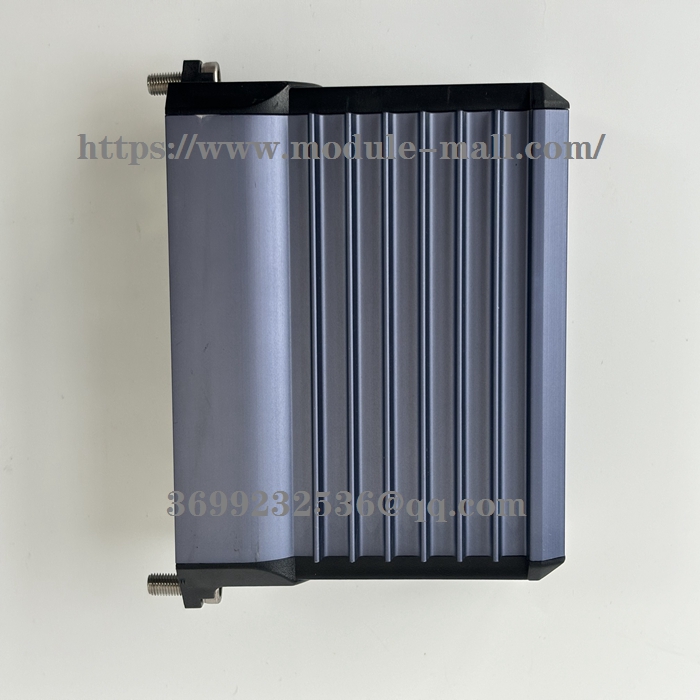

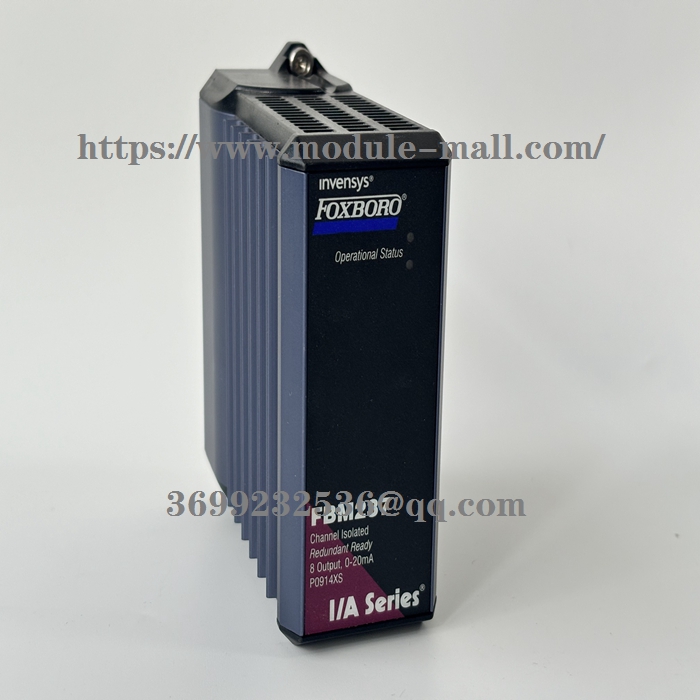

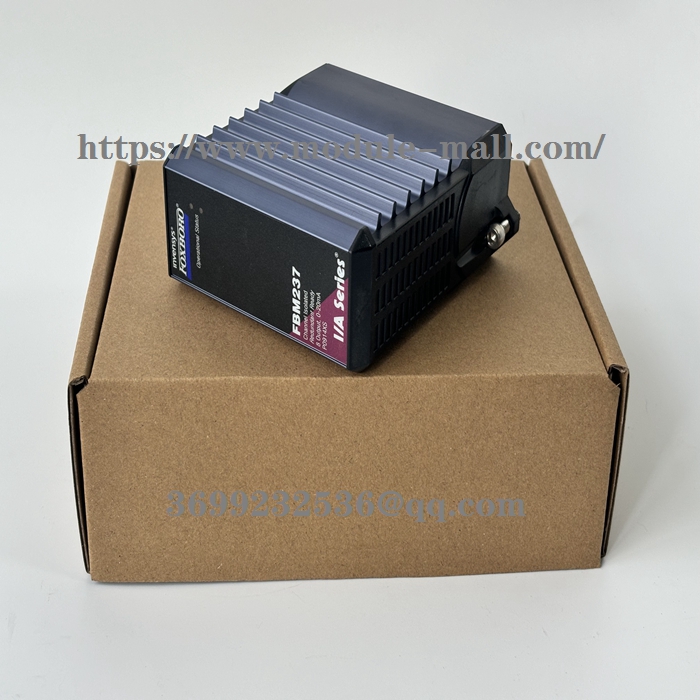

FOXBORO FBM237

FOXBORO FBM237  Series channel isolation 8

The FBM237 0 to 20 mA output interface module includes eight isolated 0 to 20mA DC analog output channels. These output channels are insulated from other channels and ground. This module can
As a single unit, it can also be used as a redundant pair.
function
1，Eight 4 to 20 mA DC analog output channels
2，Each output channel is electrically isolated
3，individual or redundant modules
4，Sturdy design, suitable for enclosures in G3 level (harsh) environments
5，TA is used to connect on-site wiring locally or remotely to FBM237
6，TA is used together with the output bypass station to maintain output during maintenance operations
7，layers of terminal components Q for each channel's internal and/or external loop powered transmitter

8， Electrical compatibility with standard HART signals

Other models： FBM230 , FBM231 , FBM232 ,  FBM233  ，FBM237 ，FBM240 ，FBM241 ，FBM241C ，FBM242 ，FBMSSW ，FBMSVH ，FBMSVL ，FCM10E ，FEM100 ，FCP270 ，FCP280 ，FPS400-24
